Volume monitor

The volume monitor looks at the number of rows in a table to detect how much data is added or removed and alerts you of abnormal increases or decreases. Among others, this can help you identify.

• A sudden jump in duplicate rows due to a faulty join
• A decrease in a data source due to an upstream error
• A system failure caused no new records to be inserted

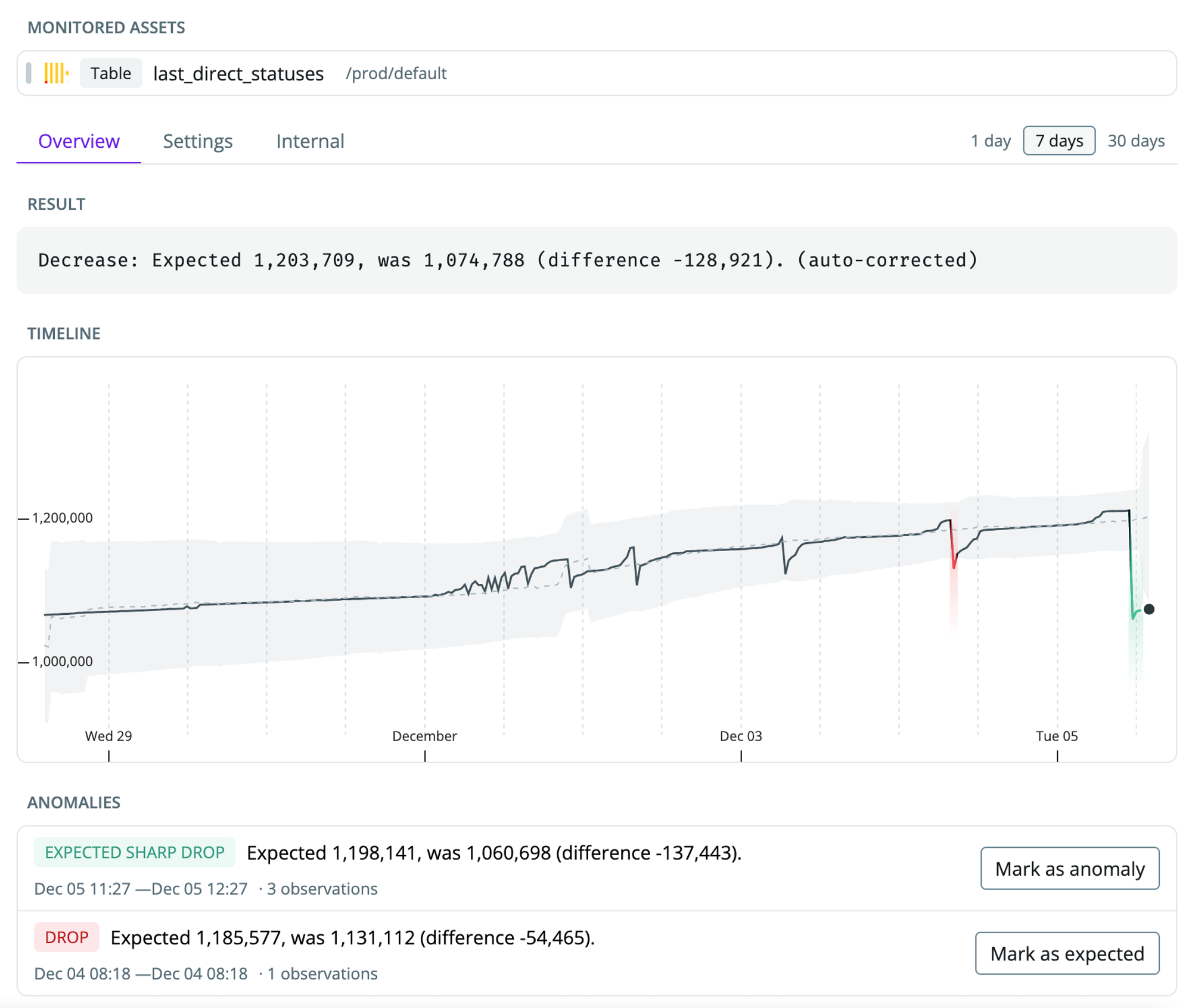

A volume monitor highlighting a sudden drop in the row count

Synq supports two different kinds of volume monitors. (1) Default volume monitor and (2) custom volume monitor. Read more about best practices for deploying these at Setting up monitors

​

Default volume monitor

Default volume monitors rely on your data warehouse metadata tables, such as the row_count from the Snowflake table information schema. As the monitor queries the information schema, you only incur minimal additional costs even when they are run frequently. The monitor works out of the box, which makes it easy to deploy at scale.

Unless you need custom functionality, such as grouping by a different time field, we recommend you use default volume monitors.

Default volume monitors are run every 60 minutes.

​

Setting up a default volume monitor

1. Navigate to Health → Manage monitors
2. Click Create monitor group to define the tables you want to monitor

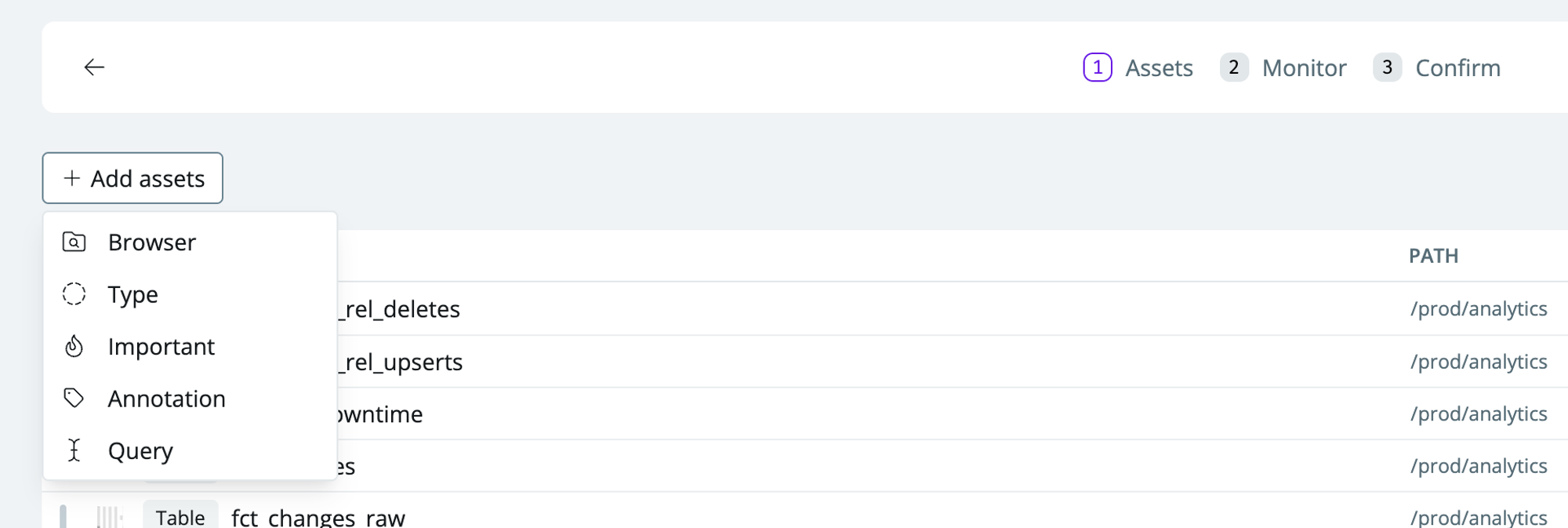

3. Use the Synq browser to narrow down the tables you want to monitor

• Browser—select specific schemas or search for tables to monitor (Synq automatically maps your data warehouse tables and dbt models)
• Annotation—select assets with metadata definitions such as tag defined in a yml file from dbt
• Important—select assets that you’ve marked as important
• Query—advanced selection. E.g., search for specific keyword matches

4. Check Volume to set up a volume monitor group



5. Name the monitor (e.g., important tables volume monitor).



6. Click continue to set up the monitor

You’ll be able to see all monitors on the Health overview page and adjust the monitor sensitivity.

​

Custom volume monitor

Unlike the default volume monitor, the custom volume monitor queries your raw data. This gives you more configuration options, such as specifying a time dimension or automatically grouping by a segment. However, it also means that each monitor must be configured individually and that you may incur additional costs from running it.

​

Setting up a custom volume monitor

1. Navigate to the table where you want to set up the monitor and click Add Monitor (you can only set up monitors on a data warehouse table. If you’re on a dbt model representation, click the link to the warehouse table to see the button)



2. Select Volume to start creating a custom volume monitor



3. Configure the monitor with the relevant settings

   • Time partition—the time partition you want your data segmented by (e.g., creation_date)
   • Days to delay—days to ignore if you have a delay in when you expect fresh data
   • Sensitivity—see Configuring model sensitivity
   • Custom filter—specify custom SQL to filter by

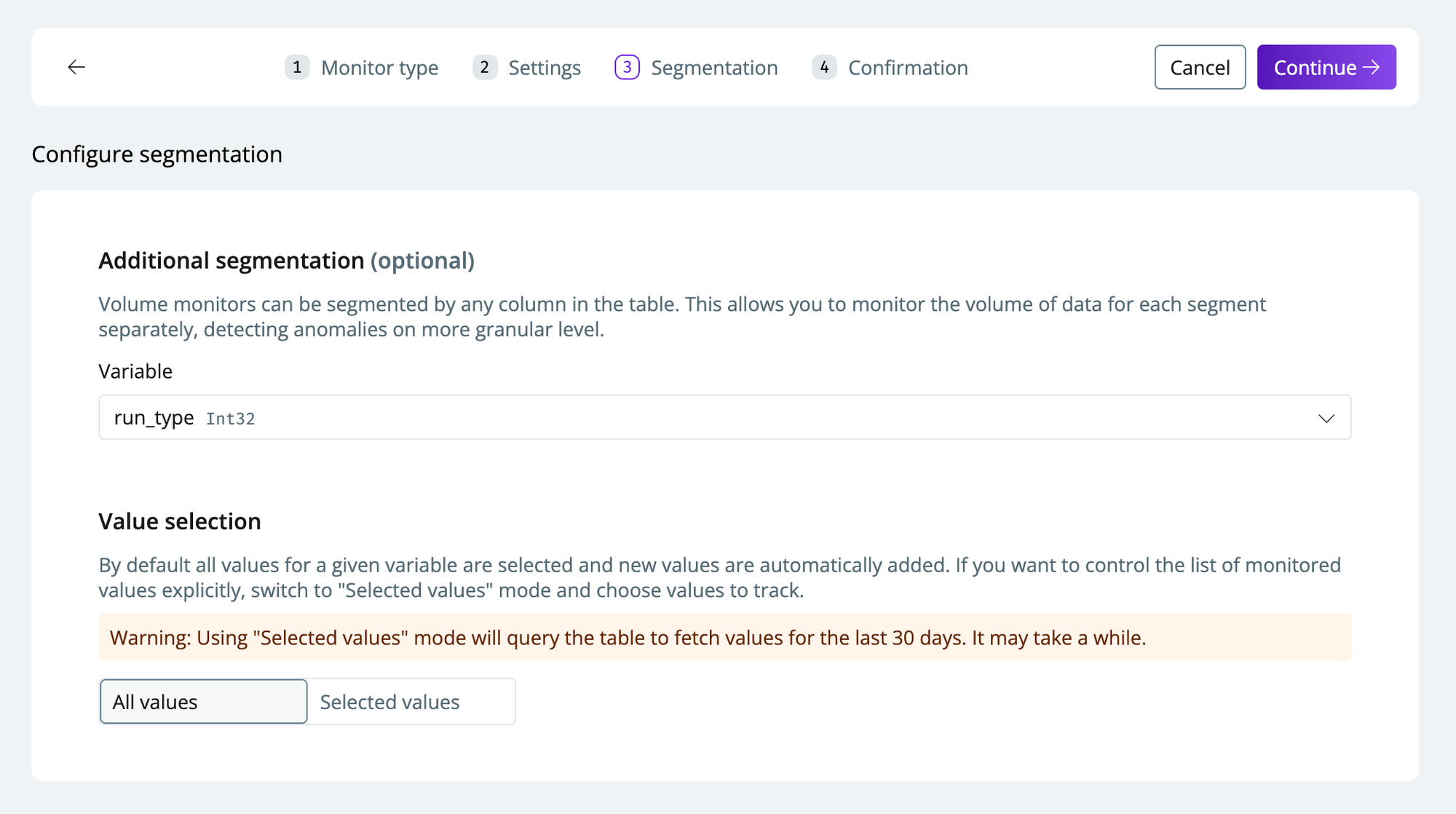

4. Select a variable to segment by (optional). This will create multiple time series for each segment you select to include

   • If you only want to create a monitor for specific segments, toggle Selected values and select the desired values
   • If you select All values, new values are automatically added.



   Be cautious of including segments with only a few data points, as the model may not be able to confidently learn a reliable confidence interval for these segments, which can lead to many false/positive alerts

5. Click continue to set up the monitor with the specified configurations



The monitor will appear in Synq shortly and can be found directly under the table you created it for and on the Health page

Resetting a monitor

If you want to rerun predictions for the past 30 days in case you made historical updates on the data, you can go to the monitor, click Settings, and press Reset monitor. This step is not reversible to only proceed if you’re certain you want to reset the monitor.
