Overview
You can connect GitHub repositories in two ways:- Install the Coalesce Quality GitHub App on your GitHub organization, then pick the repositories to analyze.
- Create a Git integration and add its public SSH key to the repository as a read-only deploy key.
Install the GitHub App
The GitHub App asks for read-only access: repository contents, metadata and Actions. It also receivespush and workflow_job events, so Coalesce Quality analyzes new commits soon after a push.
- In Coalesce Quality, go to Settings > Integrations and select GitHub.
- GitHub opens the app installation page. Select your organization and the repositories the app can access, then install it. You need to be a GitHub organization owner, or have an owner approve the request.
- GitHub returns you to Coalesce Quality. On the GitHub integration page, add the repositories you want to analyze from Available repositories.
- Open a configured repository to set the branches and path to analyze and to turn Store commit diffs on or off. These settings work the same way as in the Git integration form.
Deploy key
Before you start: Create your Git integration first by following the integration form instructions. You’ll need the public SSH key from that integration.
Prerequisites
- Access to GitHub
- Admin access to your repository (required to add deploy keys)
- Public SSH key from your Git integration
⏱️ Estimated time: 5 minutes
IP Whitelisting (If Required)
If your GitHub organization uses IP allow lists, add the Coalesce Quality egress IP addresses for your region. See IP Whitelist for the complete list. For instructions on adding IP addresses to GitHub, see GitHub’s guide on managing allowed IP addresses.Adding the Deploy Key
Follow these steps to add the public key as a deploy key to your GitHub repository.Navigate to Your Repository
-

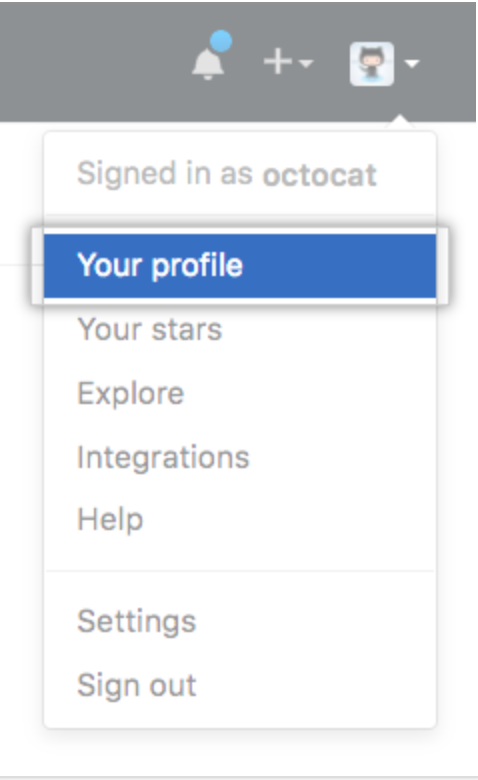

In the upper-right corner of any GitHub page, click your profile photo, then click Your profile

-

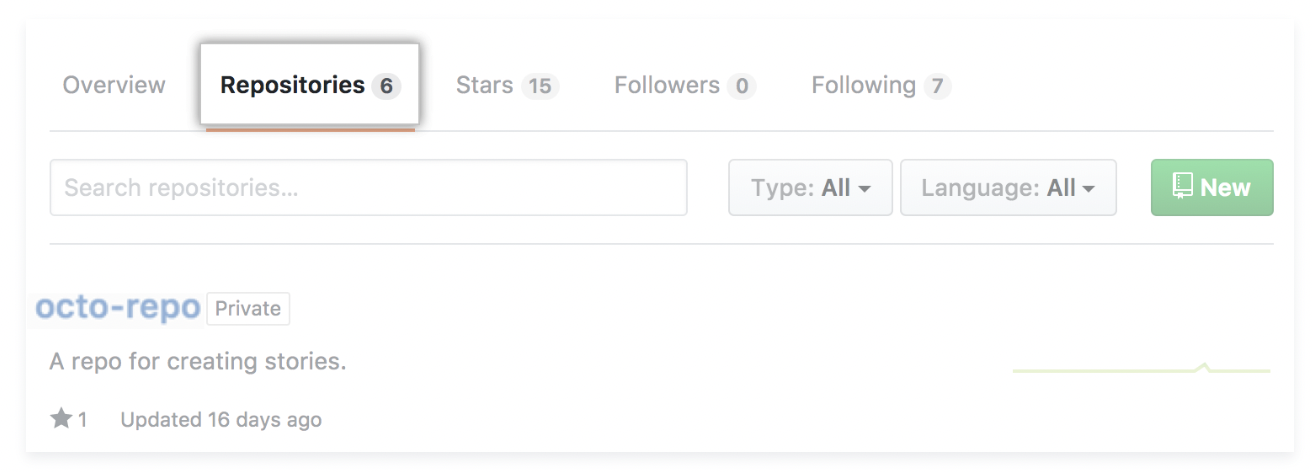

On your profile page, click Repositories, then click the name of your repository

Access Repository Settings
-

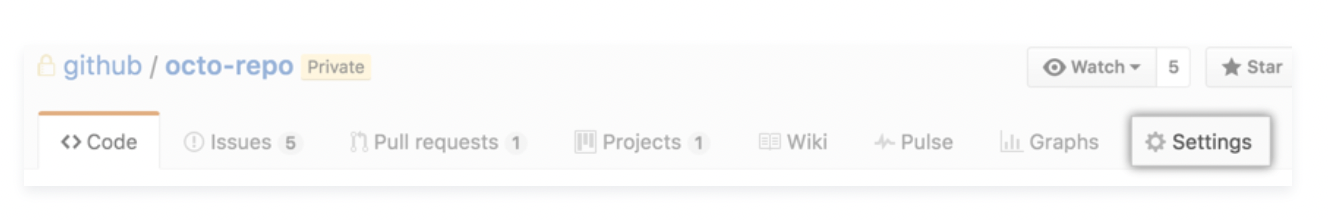

From your repository, click Settings

Add the Deploy Key
-

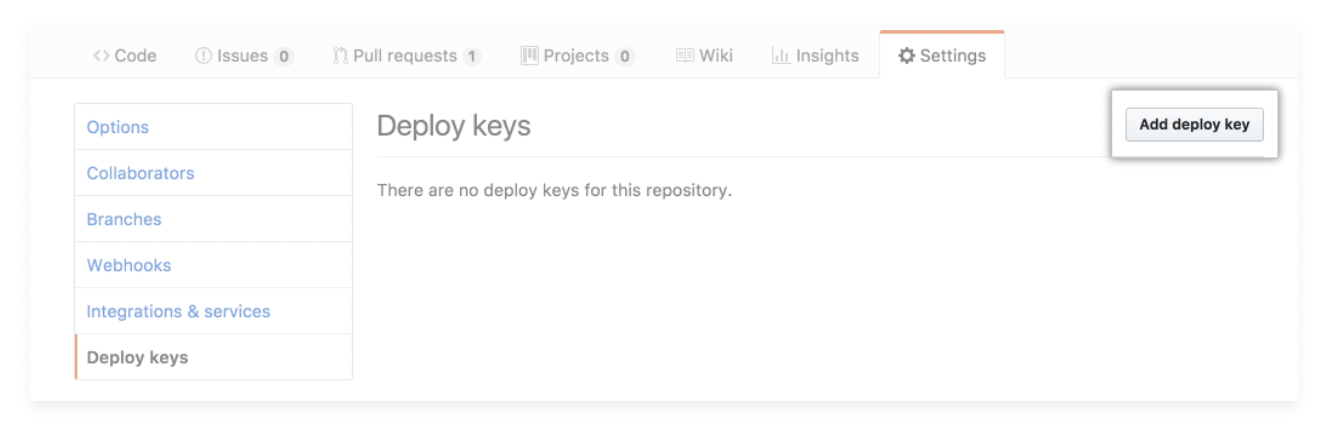

In the sidebar, click Deploy Keys, then click Add deploy key

-

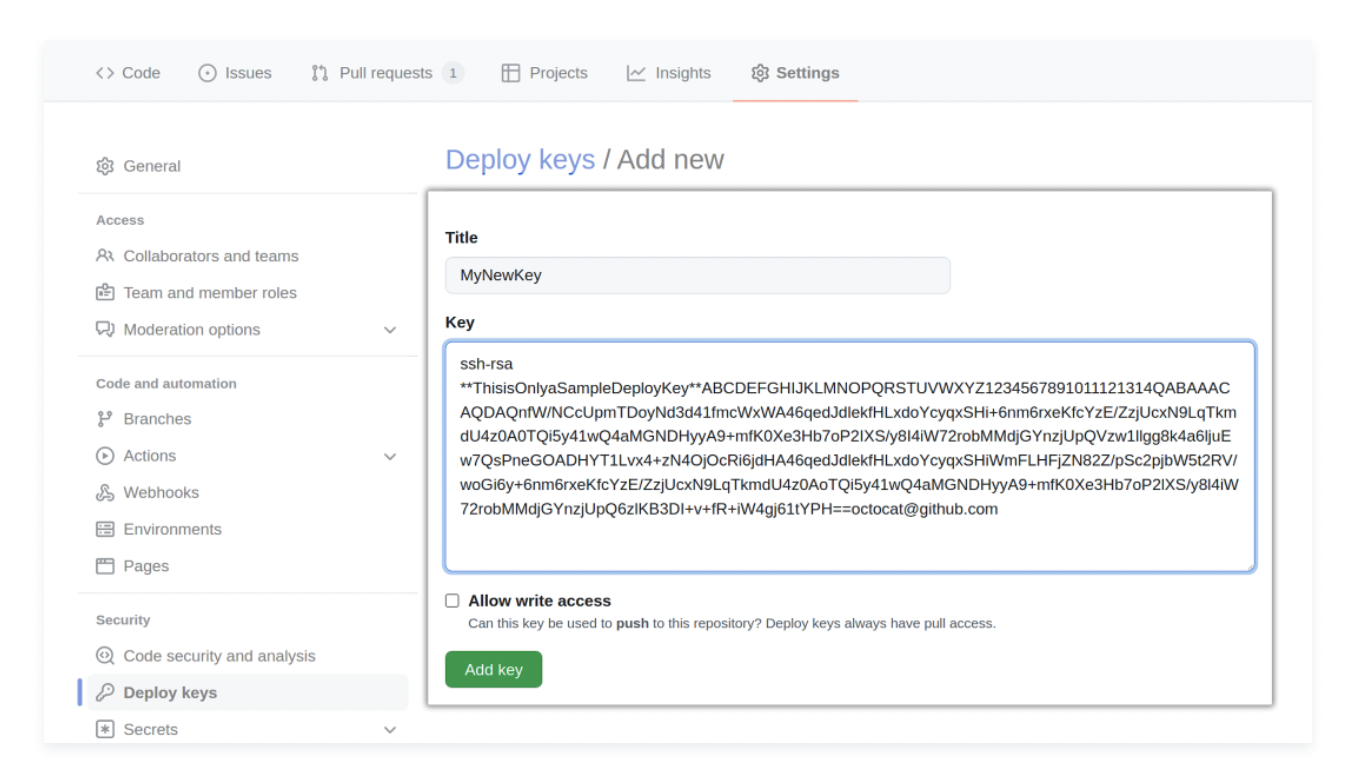

Configure the deploy key:
- Title: Enter a descriptive name (e.g.,
Coalesce Quality Integration) - Key: Paste the public key from your Git integration
- Allow write access: Leave this checkbox unchecked

- Title: Enter a descriptive name (e.g.,
- Click Add key to save the deploy key. Coalesce Quality can now read the repository.
Troubleshooting
Deploy key not working
- Verify the complete public key was copied (including the
ssh-rsaorssh-ed25519prefix) - Ensure the deploy key was added to the correct repository
- Confirm write access is disabled (unchecked)
Connection refused
- Check that your GitHub organization’s IP allow list (if configured) includes the Coalesce Quality egress IPs
- Verify the repository SSH URL is correct in the integration form
No Settings tab visible
- Confirm you have admin access to the repository
- Organization owners may need to adjust access permissions
